Standard collaborative palletizer RCP
-Use of Jaka ZU 12, PRO 16, ZU 20 o ZU 35 robots (depending on the required weight and reach)
-Base compatible with pallet truck or forklift for easy transport.
-Material: Carbon steel with 2-component epoxy paint.
-Light status indicator.
-Palletizing locations: 2.
-Pallet detection: Yes, using an electric photocell.
-12″ operator interface, intuitive and accessible to all operators.

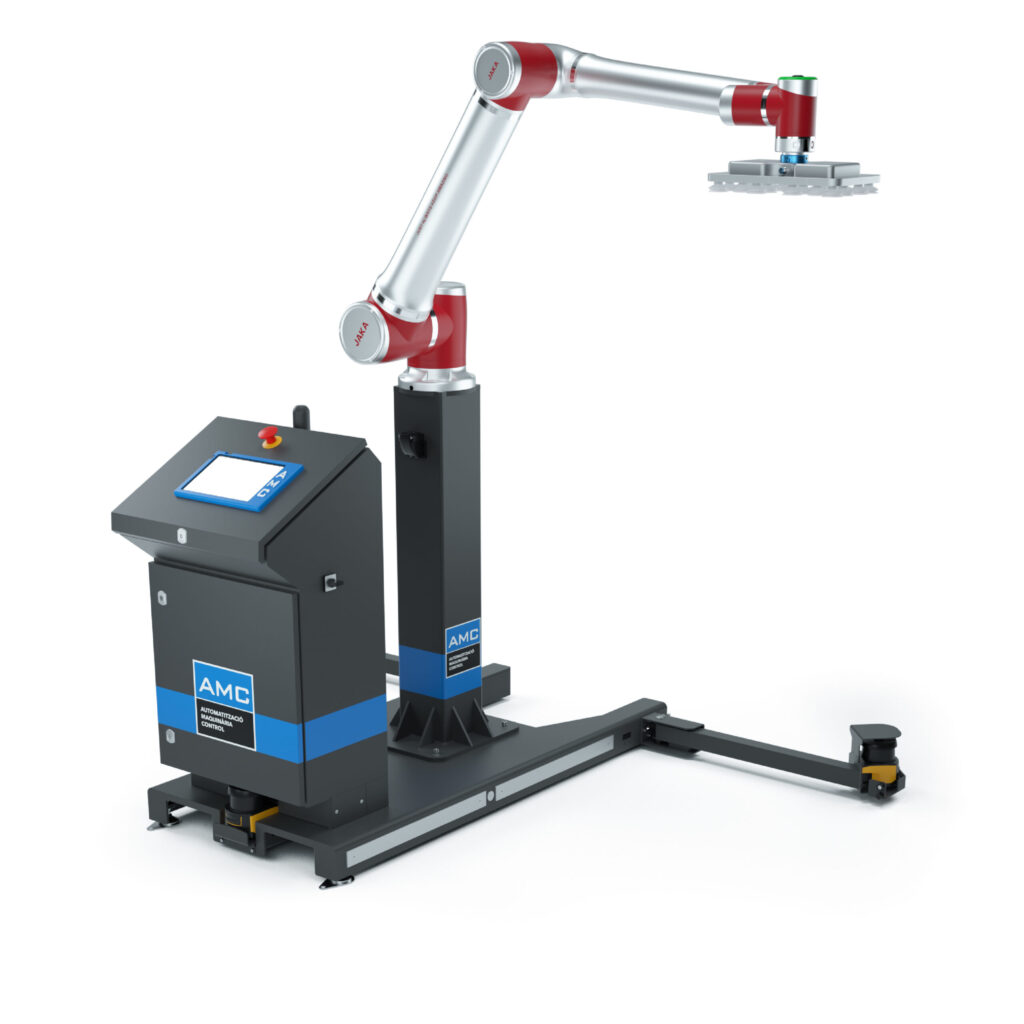

RCP12
JAKA ZU12 robot
OnRobot D:PLOY control software
OnRobot VGP30 vacuum gripper
Up to 10 boxes/min
Payload up to 9 kg
Pallet height up to 1.3 m
CE marking included
Occupied space: 2.3 x 1.7 m
For European pallets only
Fixed column
OPTIONALS
Interlayer cardboard dispenser integrated into the robot base
OnRobot 2FGP20 electric gripper
OnRobot lift 100 elevated column
Box delivery belt integrated into the robot base
OnRobot VGP20 electric vacuum gripper
Robot base made of Stainless Steel
Perimeter safety fence + front scanner
Accessories for fixing the base to the floor

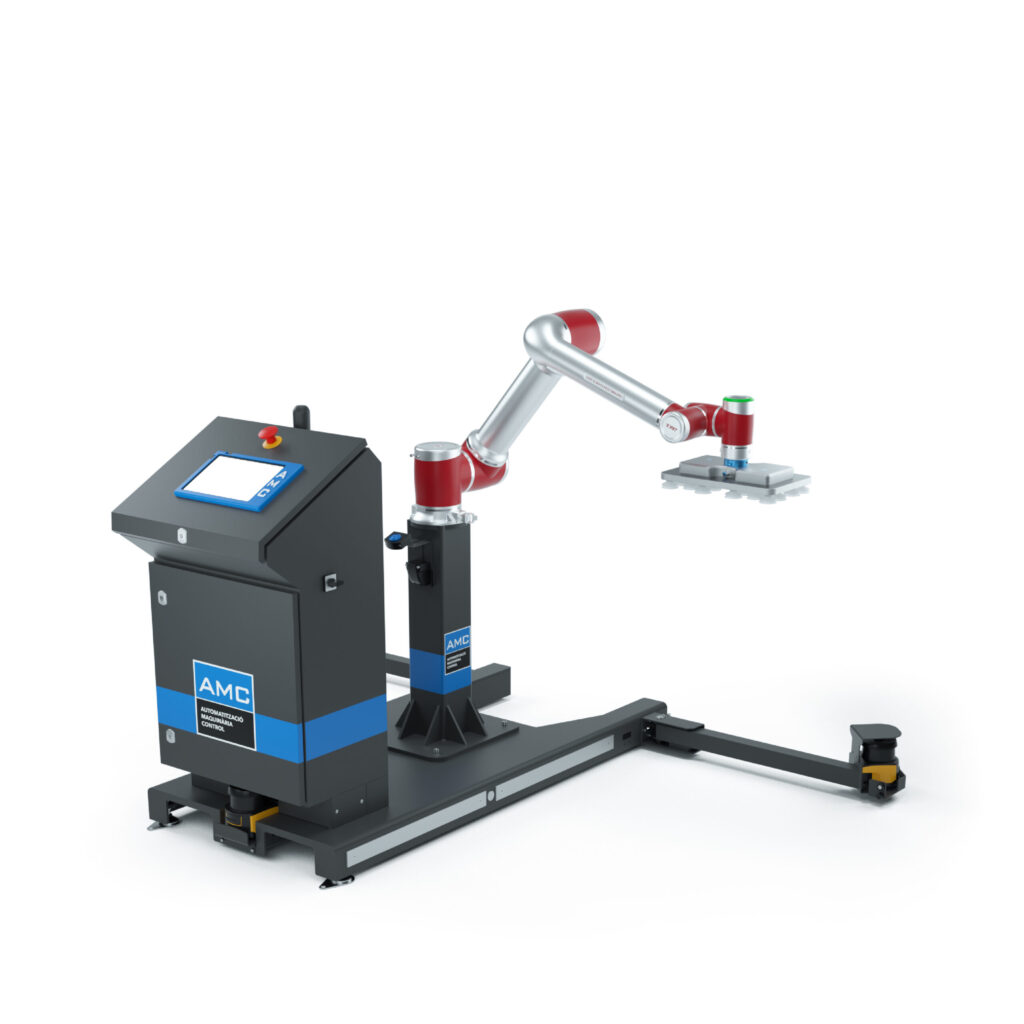

RCP16
JAKA Pro16 robot
OnRobot D:PLOY control software
OnRobot VGP30 vacuum gripper
Up to 10 boxes/min
Payload up to 13 kg
Pallet height up to 2 m
CE marking included
Occupied space: 2.5 x 1.7 m
European or American pallet
Fixed column
OPTIONALS
Interlayer cardboard dispenser integrated into the robot base
OnRobot 2FGP20 electric gripper
OnRobot lift 100 elevated column
Box delivery belt integrated into the robot base
OnRobot VGP20 electric vacuum gripper
Robot base made of Stainless Steel
Perimeter safety fence + front scanner
Accessories for fixing the base to the floor

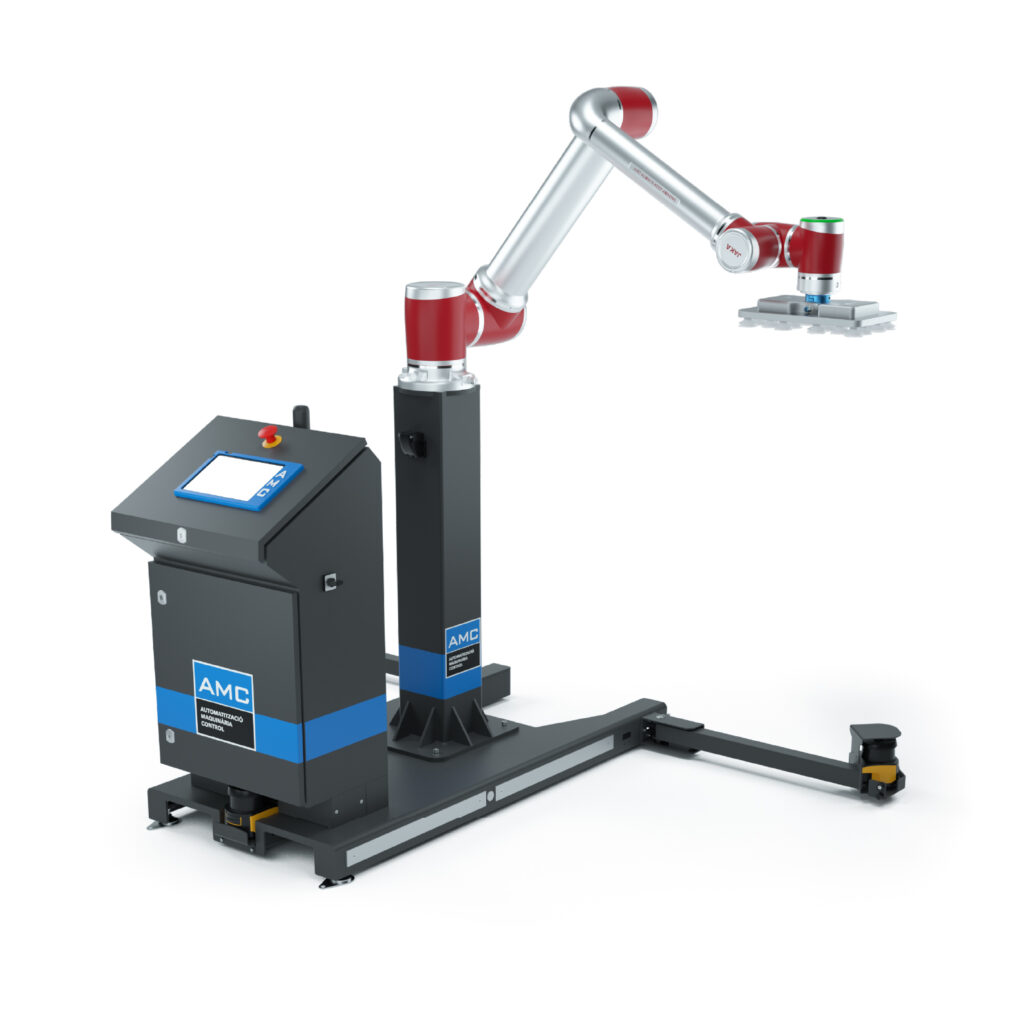

RCP20
JAKA ZU20 Robot
OnRobot D:PLOY control software
OnRobot VGP30 vacuum gripper
Up to 10 boxes/min
Payload up to 17 kg
Pallet height up to 2.1 m
CE marking included
Occupied space: 2.5 x 1.7 m
European or American pallet
Fixed column
OPTIONALS
Interlayer cardboard dispenser integrated into the robot base
OnRobot 2FGP20 electric gripper
OnRobot lift 100 elevated column
Box delivery belt integrated into the robot base
OnRobot VGP20 electric vacuum gripper
Robot base made of Stainless Steel
Perimeter safety fence + front scanner
Accessories for fixing the base to the floor
RCP35
JAKA ZU35 robot
Control software OnRobot D:PLOY
Vacuum gripper OnRobot VGP30
Up to 10 boxes/min
Payload up to 32 kg
Pallet height up to 2.5 meters
CE marking included
Footprint: 2.7 x 2 m
Euro or US pallet
Fixed column
OPTIONALS
Interlayer cardboard dispenser integrated into the robot base
OnRobot 2FGP20 electric gripper
OnRobot lift 100 elevated column
Box delivery belt integrated into the robot base
OnRobot VGP20 electric vacuum gripper
Robot base made of Stainless Steel
Perimeter safety fence + front scanner
Accessories for fixing the base to the floor
